The Next Step for Tire Pressure Management

Oct. 17, 2018

Tire pressure monitoring and inflation systems are accepted as a proven way for fleets — either themselves or with the help of commercial tire dealers — to manage one of their biggest consumable items and better ensure safe operation on public roadways. These systems continue to evolve, adding capabilities and functions that increase their effectiveness.

Vanessa Hargrave, chief operating officer for Advantage PressurePro LLC, notes that tire pressure monitoring is not new and has been on a steady path of improvement since it appeared over two decades ago. “Over our 26 years in the market, PressurePro has witnessed huge changes in TPMS capabilities, as well as changes in customers’ needs,” she says. “At first, legacy TPMS simply read and reported tire pressures to an in-cab reader. While a revolution in itself, as this capability allowed users to monitor tire performance from the safety and comfort of their cab as well as allowed them to continuously monitor the same performance while on the move, today’s units have greatly expanded on features and capabilities.”

Today, Hargrave says, PressurePro has expanded its TPMS capabilities to meet changing fleet needs, moving beyond providing real-time tire pressure and temperature readings. Expanded alerts and information also include two different levels of low-pressure warnings, a high-pressure alert, an upper temperature alert and a cross-axle alert.

On top of monitoring, automatic tire inflation systems monitor tire pressure in comparison to a preset target pressure and automatically inflate tires whenever the detected pressure is below the target. And today there are systems available for tractor drive axles in addition to the trailer tire systems that have been around for some time.

Typically, an ATIS (automatic tire inflation system) uses a status light to alert the driver that the system is delivering air to the tires, says Tiona Campbell, program manager, controls, for Hendrickson USA LLC.

“These systems typically do not report out actual tire pressures, nor can the driver adjust the system target pressure from inside the cab. Most ATIS draw air from vehicle-mounted (air supplies), while some draw air directly from the environment via a self-contained pump.

“Both styles are only capable of inflating tires found to be below the target pressure. They are unable to relieve air from over-inflated tires.”

To alleviate this problem, Campbell says Hendrickson’s next generation Tiremaax Pro advanced automatic tire pressure control system will not only address under-inflated tires but also over-inflated tires.

“It can automatically provide air to a tire found to be below the preset target pressure, and it can respond to changes in ambient temperature by relieving air from a trailer tire found to be above a preset upper threshold,” she says. “Tiremaax Pro can also equalize tire pressures across all wheel positions. All of this is done automatically, with no driver intervention required.”

Even more capabilities are coming. For instance, Dana Ltd. intends to introduce an active-inflation component to a TPMS next year. “Similar systems have been in place on trailers for several years now,” says Steve Slesinski, Dana’s director of product planning for the commercial vehicle market. “But with a trailer axle, you’re basically routing the system though a big, hollow, tube. Power unit axles and their gearing are much more complex to design around. But we’ll have a viable solution for tractors and feel that the industry will respond and accept this technology as it did with trailer systems.”

Slesinski says Dana’s research shows that fleets typically experience one unplanned “tire event” a year per truck at a cost of around $700 for service and repairs. “And that’s without factoring in an additional $500 to $1,000 in downtime costs.”

Trey Thompson, digital solutions field engineering leader for Continental Tire the Americas LLC, says many tire pressure management systems today are stand-alone systems with no ability to aggregate data, see data history, or view the data remotely. But, he adds, connectivity will be more and more common in the future.

Managing the data

Of course, being able to get more real-time data about your tires can be overwhelming if you can’t identify “actionable” information you can use in the shop.

Peggy Fisher, president of TireStamp Inc., says her company and others are well aware of the need to streamline information coming into fleets.

She says tire pressure monitoring and management systems will integrate further with telematics systems in the future, eventually allowing fleets to have improved visibility and control over developing tire situations. With that in mind, she recommends fleets take into account what kind of data they will be able to access.

“The information you’re getting should be useful and not overwhelming. On the other hand, these systems can provide crucial data fleets need to make informed maintenance decisions. And if all you’re getting are alerts, you’re missing out on a great deal of data.”

To help, Fisher says TireStamp has an app that allows technicians and managers to check on a vehicle on demand. Managers can use this app to:

  • see where the vehicle is,
  • see what service it needs, and
  • prioritize the service that is conducted at that location.

“We also provide the fleet with several useful reports that do not overwhelm with too much data,” she adds.

Likewise, Hargrave says PressurePro has integrated its system with PeopleNet, Omnitracs, Geotab and other telematics providers, as well as RS232 and CANbus (J1939) abilities. “In doing so,” she says, “we’re able to easily integrate our technology and read via tethering or vehicle networks to provide complete and easy-to-use integration options along with our advanced analyzation tools, including our newly released Automated Data Logger software, so users can analyze tire performance data and recognize tire performance trends and patterns.”

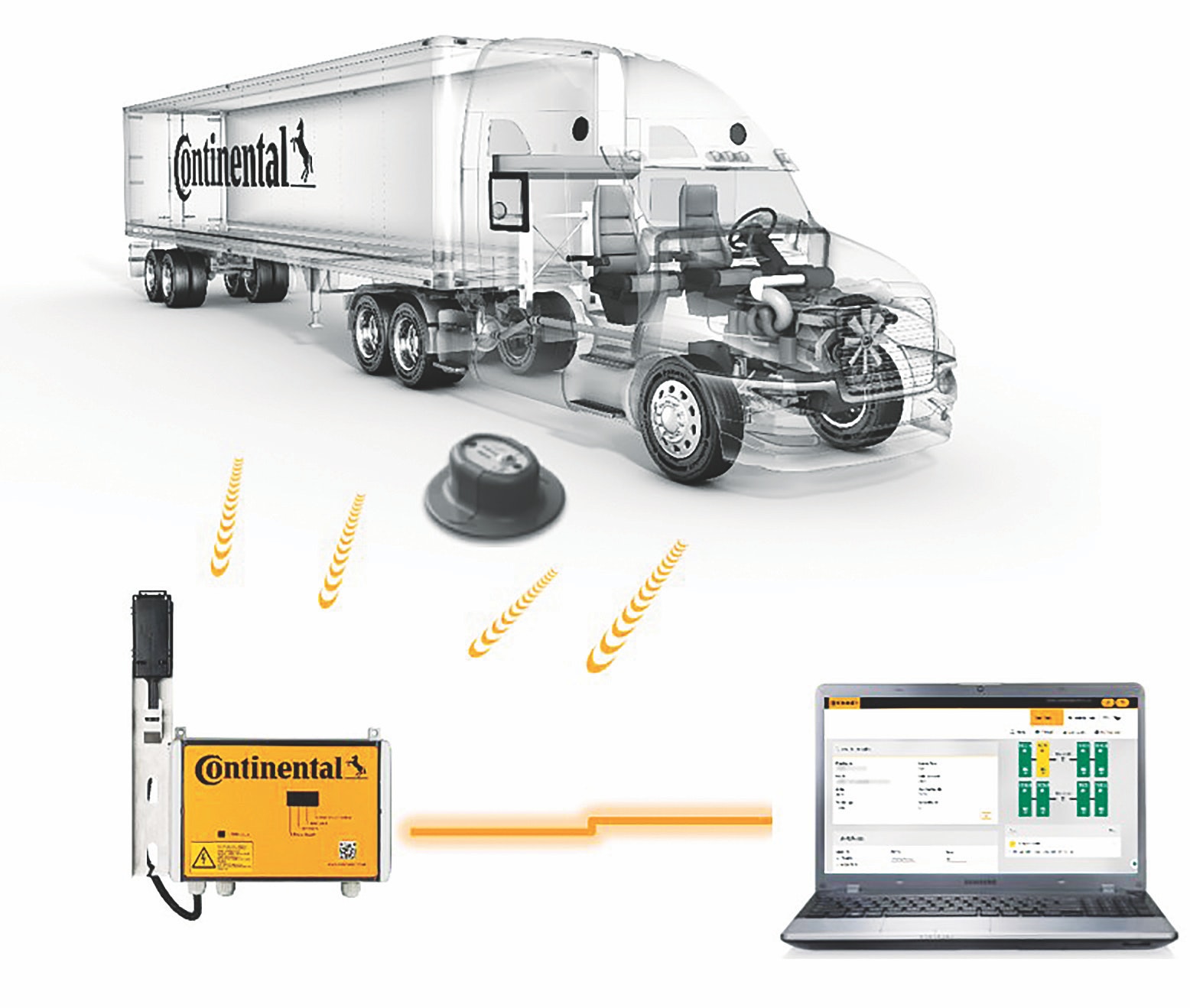

Continental can integrate its ContiPressureCheck TPMS with PeopleNet or Zonar so users of those telematic platforms can view tire data inside their telematics portal. But it has gone beyond that with its new ContiConnect remote tire monitoring platform, which allows tire data to be accessed remotely by back office personnel every time trucks return to the fleet yard.

“The yard reader station collects the data and passes it to a web portal, where the data can be viewed from anywhere in the world,” Thompson says. The web portal features audible and visual alerts if a tire experiences low pressure or high temperature; it also can  trigger text message and email notifications of the alert.

“This notification capability means that a fleet manager, maintenance personnel, or tire service provider can be alerted to the problem even if they are not constantly monitoring the web portal,” he says.

“While significantly more data is becoming available across the trucking industry, customers are becoming less interested in having it reported to them,” says Judith Monte, vice president of marketing for Aperia Technologies Inc., which makes the Halo automatic tire inflation system. “The future of tire management is not about reporting data to customers, but transforming data into insights and automatically taking action on them.”

Monte says the most advanced TPMS solutions today provide insights to fleet managers to be able to take action, but the future is enabling fleets to streamline operations by automatically taking that action on the data on their behalf.
