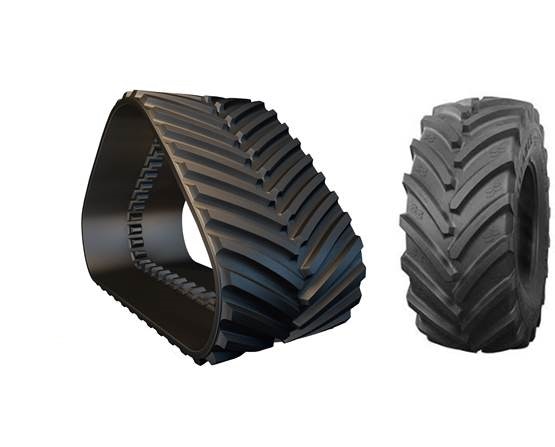

Tracks vs. Tires: How to Know Which Is Best for Your Farm Customer

Dec. 12, 2018

The debate continues whether tracks or tires are better in the field. There are advocates on both sides. But the experts agree there's not a one-size-fits-all answer, and tire dealers need to know how to guide their farm customers to making the best solution.

This month AG Tire Talk takes on the tracks vs. tires debate. Seven tire manufacturers offer tips on how to choose the right system for the right application.

QUESTION: In which applications and fitments do you recommend using rubber tracks vs. tires? What are the performance differences in terms of traction, fuel economy, soil compaction and roading between the two? (Editor’s note: Bridgestone Americas Tire Operations LLC, through its Firestone Ag Division, and Continental AG, through its ContiTech subsidiary, offer both tracks and tires.)

Bradley Harris, manager of global agricultural field engineering, Firestone Ag Division, Bridgestone Americas Tire Operations: Just like asking if apple or orange juice is better, asking if tracks or tires are better systems comes down to customer preference. Both systems have pros and cons, so it is important to understand the facts and benefits about each system and determine which is best for your operation.  In many operations, it could be a combination of both systems.

When I ask users why they have tracks, the number one response I get is, “I want to get rid of compaction and the track has a much larger footprint area.” While it is true the total footprint area of a track is larger than a tire, the weight of the machine is not equally distributed under the track.

When measuring the contact pressure of the track system, there are pressure spikes under each one of the boggy wheels. In wet or moist soils, the soil is damaged by the highest contact pressures, which would be under those boggy wheels.

Firestone Ag has conducted studies on soil contact pressures on two- and four-track systems and wheeled tractors and has published technical papers with the American Society of Agricultural and Biological Engineers (ASABE). The results show:

  • If the inflation pressure of the tires is less than 20 psi, tires transmit less contact pressure to the soil compared to tracks.
  • From 20 to 35 psi, the tracks and wheel systems were comparable.
  • If the inflation pressure of the tires is above 35 psi, the track system had lower contact pressure than the tires.

However, there is still the perception that tracks reduce soil compaction when compared to tires in all situations. What we have heard, anecdotally, is that the absence of a rut in the field means there must be no compaction. In wet soils, it does not matter which system is being used – compaction occurs with or without ruts.

The rutting is a function on how the wheel and track system operate differently. A tire rotates and the tire lug needs to pull the tractor forward. The rotation of the tire causes a wave in front of the tire, and the tire is climbing out of the rut in wet soils. The lug on the track system is planted in the soil and the tractor is pushed forward. With the track system there is not a wave of soil, so the track lug isn’t trying to climb out of a rut.

When looking at traction, track systems are most efficient at 0–3% slip, while wheeled systems are most efficient at 5–9% slip. The lower slip range of the track system does give users more traction in the field, but that does not result in less fuel used.

A track system takes more horsepower to rotate the track, which results in higher fuel consumption. When comparing a tracked tractor to a comparable wheeled tractor with the proper inflation pressure, they both will use similar amounts of fuel to complete a task.  If the tires on the wheeled tractor are over inflated, that tractor will not develop the proper footprint, which results in less traction. In this scenario, a tracked tractor would use less fuel. For traction and fuel usage, both tractors will have similar fuel costs.

When transporting tractors on the road, a wheeled tractor can operate in the 25 to 30 mph range, while tracked machines are limited to 20 mph. The faster road speeds are better for minimizing wasted time between fields. However, the narrower width of a tracked tractor makes driving on the road less stressful compared to a 4WD tractor with duals, especially in areas of the country where roads may only be 15 feet wide.

The last item a customer should consider would be total cost of ownership. Typically, a tracked tractor will cost more to purchase versus a similarly equipped wheeled tractor. Both systems require regular maintenance during the life of the tractor.

David Graden, operational agriculture market manager, Michelin North America Inc.: Throughout my travels across North America, in all types of farming environments and soil types, I like to ask track owners their thoughts and how they justify the additional expense for track machines. In all but one instance that I can recall, the owner will drill down to, “it’s my insurance policy,” meaning, their tracks give them the perception of superior traction; pulling power; and/or flotation, which is commonly confused with the reduction of soil compaction. A grower in central Iowa told me tracks require less effort to guide straight down the rows. But at what cost?

Tracks have only one advantage over tires: traction in very wet soil. In these conditions, however, their impact on the soil, in terms of compaction, does the most damage. A machine fitted with Michelin VF tires at proper air pressures has very comparable traction — with reduced compaction. Additionally, although all Michelin tires perform very well with CTIS (Central Tire Inflation Systems), we have brought a new VF Axiobib and VF Evobib to the market, specifically marked as “Tire Inflation Ready,” designed to be used with CTIS. The next question to ask is, “At what point is the soil too wet?” Have you ever seen a track machine sink in the middle of a very wet field? Many of us have!

When roading, track machines are typically limited to the speed in which they can travel roads based upon the width and length of the track they are running. Due to the amount of movement from bogie wheels and the mechanisms required to move the machine on tracks, heat builds up in the rubber of the track. The downward force/weight of each of these will also cause the rubber to deform/move. The more rubber squirms, compresses, decompresses, the more kinetic energy builds up and creates heat. Heat and rubber do not mix well and ultimately causes the rubber to break down.

We believe soil compaction is the greatest of all costs associated with tracks, especially in very wet soil. In fact, tests have shown tracks have a significant difference in how ground pressure is applied. Tracks apply a very non-uniform pressure, while tires, specifically IF & VF tires, apply a very even/uniform pressure.

To be clear, tracks have a market, and depending on the region, farmers may want to achieve different results. However, for most of North America, when you add the initial financial cost, fuel cost, maintenance, lower yield due to soil compaction, and less efficiency on the road, choosing tracks over properly inflated IF or VF tires is a very costly “insurance policy.”

James Crouch, marketing specialist, Alliance Tire Americas Inc.: At Alliance, we have invested ourselves completely in the development and sale of pneumatic agriculture tires because that is what we believe is the correct solution for providing the best overall performance for farm equipment. Sure, there are applications and field conditions that may lend themselves to belts, but the upfront cost as well as the maintenance costs make it tough to justify even in those conditions.

We are continuously expanding our Agriflex line to provide the optimal solution for farmers. A properly inflated VF tire will give any track system a run for its money.

To maximize the benefit of VF technology, or even standard radials, the tires must be run at the correct inflation pressure. The more a tire is overinflated, the lesser the potential performance will be. As a tire increases past its optimal inflation pressure, the footprint gets smaller both in length and eventually in width, while a properly inflated tire will provide the largest footprint available for that sized tire. Footprint is often where people assume a track has an advantage. This may not be completely true.

A pneumatic tire, when inflated properly, will evenly distribute the load of the machine throughout the contact area or footprint. This even weight distribution minimizes the damage done to the soil. Tracks are not known for their even weight distribution, and instead provide high pressure spots under the idlers or dollies that cause what is known as deep compaction and assist in the creation of hard pan deep under the surface.

Since their spike in popularity, tracks have been researched extensively to try to better understand what actually happens under them in relation to that of a tire.

One of the driving forces in Alliance’s R&D program is creating tires that can tackle any challenge — creating the right tire for the job. Tracks are basically a one-solution approach. In rubber tracks, you’ve got your classic lug or some minor variations that are very close to that theme. In steel tracks, you’ve got perpendicular grousers. Period.

If you search out the right tire, you can find plenty of options — thousands of them. Different combinations of width and height to get the footprint you want. Sidewall technologies ranging from sturdy, stiff bias-ply sidewalls to VF sidewalls that extend your footprint and your load capacity even further. And tread designs that are optimized for different soil types or conditions, paved work sites, over-the-road travel, gravel and rock — literally every possible situation you may be running in.

Upfront and long term cost is another huge issue with tracks. A new machine equipped with a four-track system will cost over 20% more than a machine with pneumatic tires. This is an upfront cost that likely won’t be recoverable upon trade, either. When the belts wear out, the idlers will also likely need to be retreaded or replaced.

Rob Schultz, rubber track global product manager, Continental Agriculture North America, ContiTech USA Inc.: As a broad portfolio provider, Continental offers both rubber track and tires for a complete agriculture solution. To help customers make the right product choice, we have a team of experienced field engineers who visit and consult with customers in the field, as every application is different.

Tires are suited for customers looking for an economic option with low purchase and maintenance costs. The low rolling resistance of tires also leads to lower fuel consumption and provides higher transport speeds than rubber tracks.  They have low heat buildup while roading, and can be driven loaded and unloaded on both roads and fields, providing versatility in field and on-road performance.

The carcasses of Continental agriculture tires are constructed with N.flex technology. The patent-pending material is flexible enough to absorb impact and then return to its original shape without permanent deformation. With tread patterns that have been engineered for efficiency, Continental tires can run on hard and smooth surfaces with high traction, meeting the challenge of smooth roads, rocky lanes, and muddy fields.

Continental Trackman rubber tracks, constructed for the most severe and extreme applications, provide the user more transfer torque to the ground, greater traction, and all with more flotation because of the larger footprint. This footprint allows the machine/equipment weight to be distributed across a greater area and lowers the ground pressure, thus reducing ground compaction equating to greater crop yields in most applications.

To improve track machine ride, we developed the guide-lug support system called Armorlug Anti-Vibration Technology that reduces tractor vibration.

Norberto Herbener, OE applications engineer, Trelleborg Wheel Systems Americas Inc.: There has been — and will be for a long time — the debate over which system is better: tires or tracks. Both sides have advocates, both systems have advantages/disadvantages that will have a strong influence on the selection of one system over the other.

Most important, this decision depends strongly on the use and soil conditions of each farm. We also have to consider the money the farmer obtains by selling his production and the cost of inputs needed to produce the crops.

The following points are what we know as facts:

  • Farm machinery equipped with tracks is more expensive than ones equipped with tires. So here is the first consideration when analyzing what system to purchase -- return on investment: “Does my additional upfront expense really pay off with the advantages I could obtain using this equipment during its life cycle?”
  • Tires don’t have moving parts, but tracks have a lot of them. Moving parts means maintenance and wear. Depending on working conditions and the quality of maintenance this wear could increase rapidly.
  • The cost of a set of replacement rubber tracks is significantly higher than replacing a set of tires. This is particularly significant on harder ground, as lugs on the tracks are not as flexible as the lugs on tires.
  • Changing tread spacing from flotation to row crop with tires is no issue. Track systems normally don’t allow tread spacing or track width changes, as the complete system must be changed.
  • Units with tracks are generally slower in transport mode than units equipped with tires. This is especially important for farmers with their farming ground spread out, traveling long distances between fields.
  • Track systems are heavier than tires, increasing the “death weight”… and reducing available horsepower for the real work.
  • Tires provide a smoother ride on hard surfaces or roads thanks to the cushioning the air inside the tires provides. On the other hand, tracks can provide a smoother ride on rough fields, especially when traveling across the rows. The tracks — due to their longer contact area — can bridge over ruts. However, when crossing ditches, waterways or small hills, this bridging effect of tracks is less adaptive than tires.
  • Track tractors are more maneuverable at the end of the rows as they can counter-rotate, providing the possibility of a zero turn on the spot. This maneuver will create berming when turning on end rows, and the farmer will need to level this area before planting -- additional time-consuming labor. There is also the risk to jackknife the tractor into the implement when turning sharp on end rows with an implement that is hooked to the drawbar. There is more care and precaution to be taken with track units.
  • The flexing property of the tires helps improve the self-cleaning during labor in higher moisture conditions.
  • One large advantage of tracks is as they don’t have air, they can’t go flat like tires.

With superficial compaction, the general assumption is that tracks provide a lower superficial compaction, as there is more surface contact with the ground compared with tires. This idea would be correct if the pressure — total tractor weight — was distributed uniformly on the complete contact surface of the track with the ground. Studies have shown, however, that this assumption is not the case, and that the largest pressure occurs on the drive wheel…  (with) very little pressure applied in between the dolly wheels.

Dave Paulk, manager of field technical services, BKT USA, Inc.: The debate between tires versus rubber tracks is ongoing. A lot depends on where and when you are using the equipment. It also depends on gaining flotation and traction in wet ground or reduced ground disturbance and traction in dry dirt. The main difference between tracks and tires is how they distribute weight, and how this benefits you.

Tires have footprints that contact the ground during the revolution of the tire. The machine’s weight has to be transferred evenly to the ground during these revolutions. The larger the footprint of the tire the more evenly the weight is distributed, and the less ground bearing pressure it delivers. Tracks have a much greater ground contact area that reduces the tractor weight transfer to the ground. Thus, in theory tracks delivers less pounds per square inch (PSI) of ground bearing pressure than tires. The points of contact of the bogey wheels and drive wheels increase this some.

In terms of traction, tracks work better in wet soil. Tires do as well or better in dry soil. Tracks tend to float across the ground in wet dirt, thus not creating ruts. Tires have to work a little harder in wet soil, and can leave ruts. With the advent of IF and VF tires, you can run lower air pressures to give more foot print, traction and flotation.

In terms of fuel economy, tracks are designed to work with about 5% slippage. Tires are designed to work with between 8% and 15% slippage, with closer to 8% being optimum. Tracks are possibly a little more fuel efficient with less slippage factored in, but there are other factors to consider, such as the cost of operating and maintaining tracks.

Soil compaction has to be considered when using either one. On average, tracks deliver about 4-8 psi of ground bearing pressure to the soil when parked. This can change some when the tractor is under a drawbar load, and because of track stiffness. The points of contact with the drive wheels and bogey wheels increases this some.

So, which is better? Tracks definitely have an advantage in wet soil. You have heard the old adage, “If it’s too wet in the field, stay out.” Sometimes that is not reality, as crops have to be taken out of the field in the fall, no matter the weather or conditions. This is the purpose of tracks on combines and grain carts.

The more serious (issue) is the cost of operating tracks or tires. Although the price of tracks has come down a little, they are still expensive. The cost of maintaining the suspension on tracks is expensive compared to a tractor with tires.

Scott Sloan, ag product manager/global LSW, Titan International Inc.: Tracks vs. tires has been an ongoing debate in the ag industry for many years. Depending on what side of the fence you are on, each can make the case. But it really boils down to cost. (With) tracks, although they do a fine job in certain applications, the cost to own and operate them always catches up with the end user, from initial purchase cost — $60,000 to $100,000 more for a track machine over a wheeled machine of the same horsepower — to the inevitable maintenance cost on the tracks, which includes not only parts but time to continually lubricate and adjust.

There have been numerous studies that show advantages to both for traction and flotation, again depending on the source.  When it comes to compaction, the idea that a track has an advantage is a bit of a misnomer. Flotation and compaction are two different conversations.

In studies it has been proven that track machines actually have higher ground bearing pressures than a wheeled machine with correctly inflated tires. Tracks machines tend to be heavier than their wheeled counterparts. That load is being carried and is concentrated on the bogies and idlers in the track itself, not equally distributed across the track. Since a tire has an air chamber the load is distributed more evenly across the footprint.

With the release of the Goodyear LSW1250/35R46 and the LSW1400/30R46, it has become apparent that a wheeled machine can match the flotation of a track machine with all the advantages of a wheeled machine like higher road speeds with unlimited durations. Pulling power is identical between the two when tractors are properly ballasted.

We are seeing a major trend moving away from tracks and to the super singles going on in the marketplace. OE’s are evaluating and will most likely be offering them in the very near future.

James Tuschner has spent 25 years in the tire industry, primarily focused on the agricultural and specialty tire markets. His experience includes time spent at Alliance Tire Americas Inc. (first as director of marketing, then as director of business development) and Denman Tire Corp. He started in 2016.
